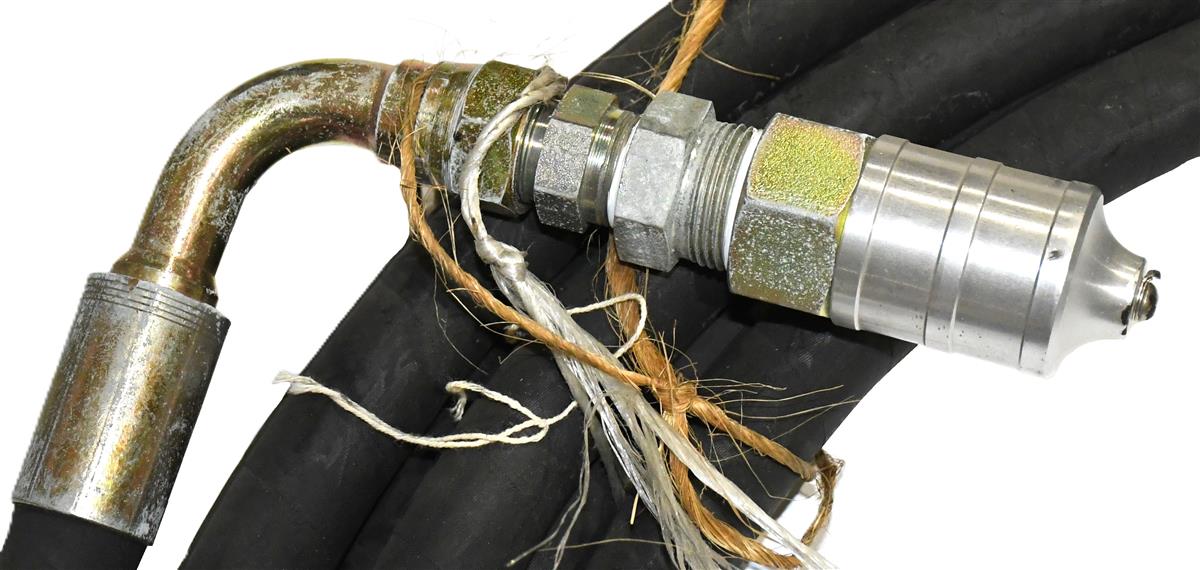

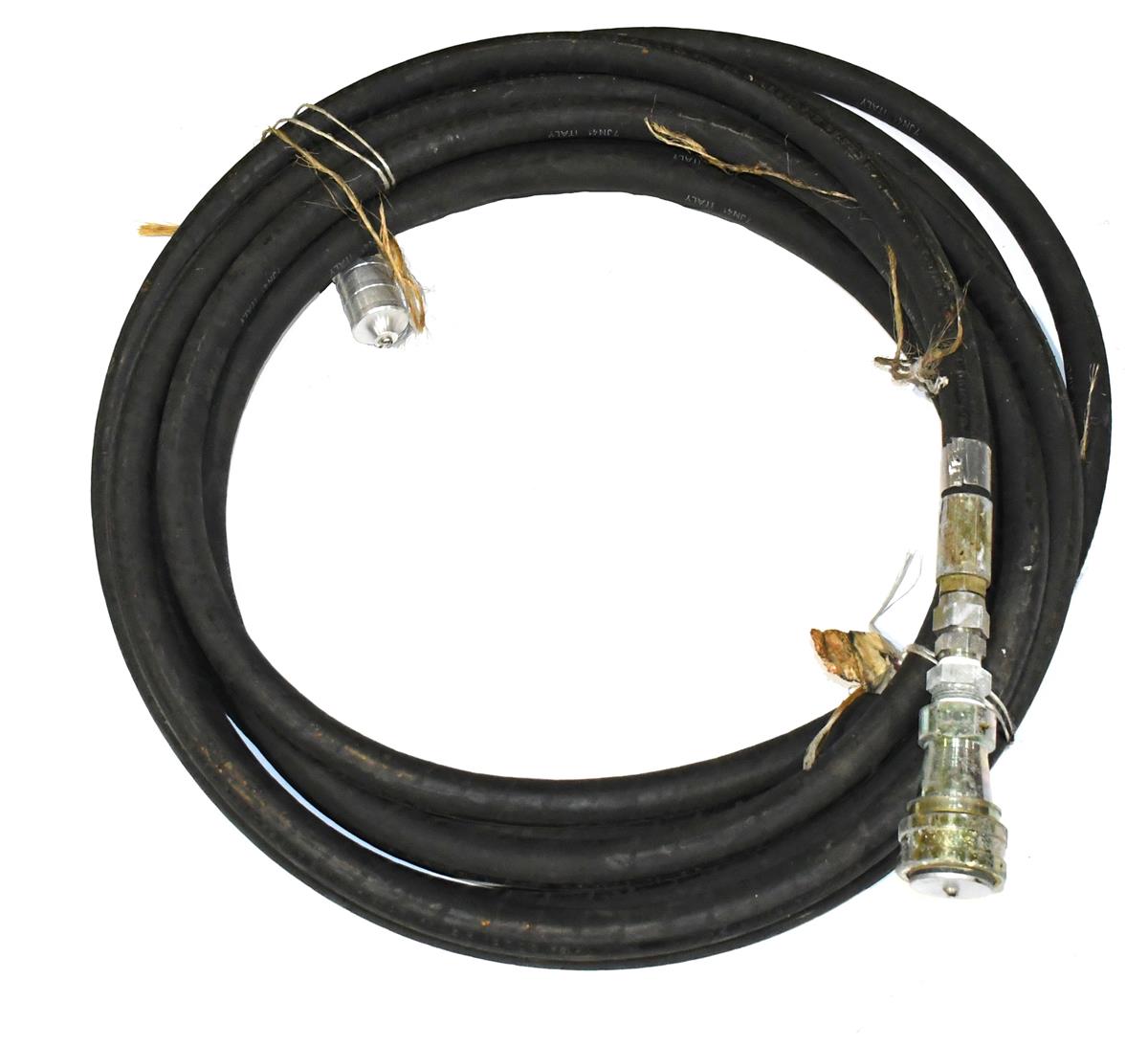

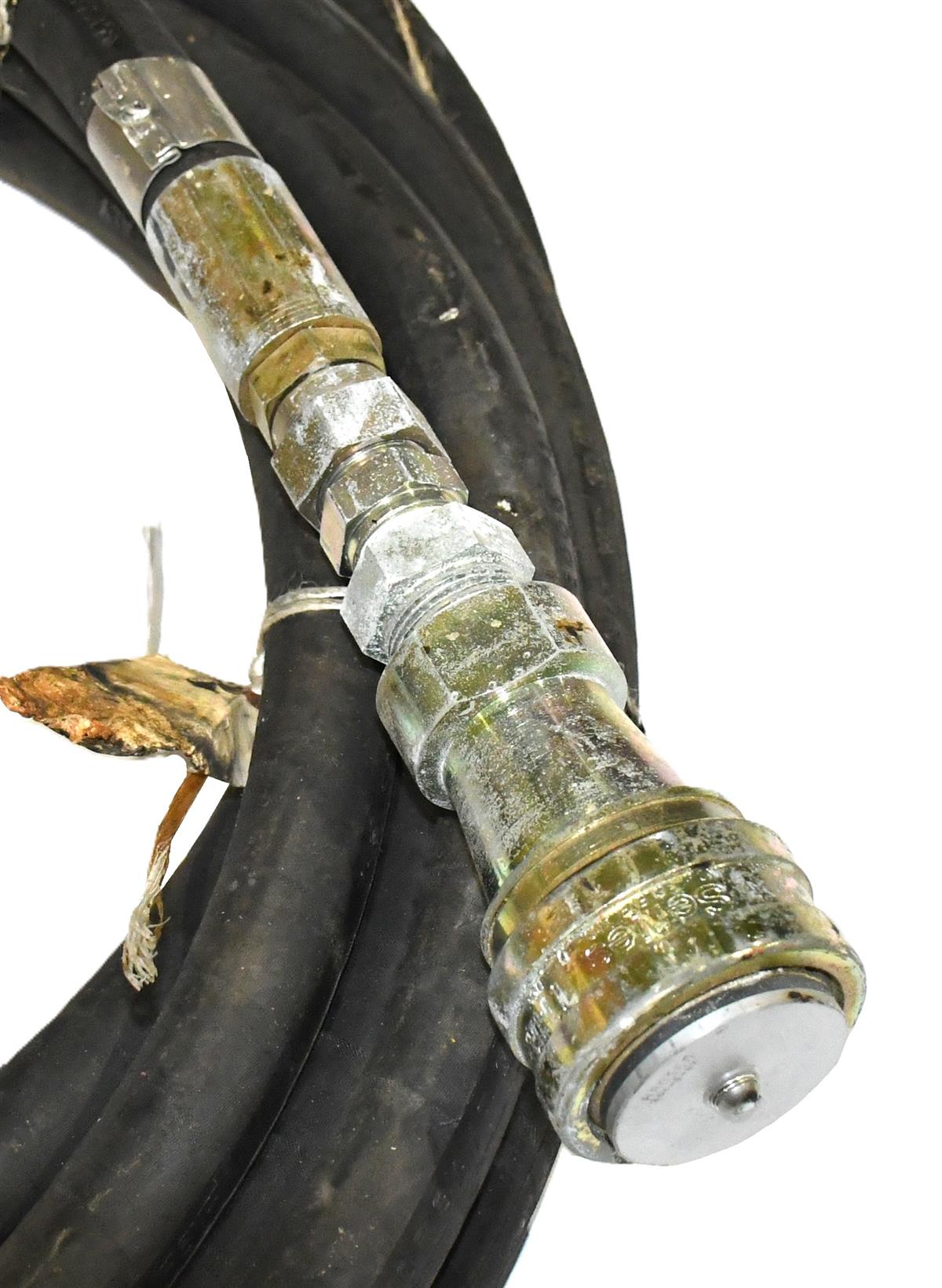

Hose Assembly Nonmetallic 0.750 Inch Inside Diameter 40 Feet AVLB Model M60A1
- Inside Diameter: 0.750 in.
- Outside Diameter: 1.203 in.
- Minimum Inside Bending Radius: 9.5 in.
- Nominal Thread Size 1st End: 1.062 in.
- Nominal Thread Size 2nd End: 1.625 in.
- Measuring Method and Length: 40 ft.
- Seat Angle 1st End: 37 Degrees
- Seat Angle 2nd End: 37 Degrees
- Burst Test Pressure: 12,000 PSI
- Hydrostatic Test Pressure: 6,000 PSI
- Maximum Operating Pressure: 3,000 PSI
- Temp Rating -40 Fahrenheit and 200 Fahrenheit Single Response
- Flow Angle: 90 Degrees 2nd End
- Special Features: Inner Conveying Tube Material-Rubber Synthetic
Fits: Special Application
- Bridge Armor Vehicle Launcher (AVLB) Model M60A1
